Product Details
Place of Origin: China
Brand Name: FUYANG
Certification: ce, RoHS
Model Number: F-4048
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: 1unit/carton box
Delivery Time: 15working days
Payment Terms: T/T
Supply Ability: 100PCS /DAY
Machine Type: |
Industrial Ultrasonic Cleaner |
Core Components: |
Motor, Industrial Sensor |
Cleaning Process: |
Cold Water Cleaning |
Material: |
Stainless Steel SUS304 |
Tank Size: |
700*550*500mm |
Frequency: |
40KHz |
Applicable Industries: |
Machinery Repair Shops, Home Use, Retail |
Cleaning Type: |
Immersion / Soak |
Warranty: |
1 Year |
Use: |
Degreasing |
Machine Type: |
Industrial Ultrasonic Cleaner |
Core Components: |
Motor, Industrial Sensor |
Cleaning Process: |
Cold Water Cleaning |
Material: |
Stainless Steel SUS304 |
Tank Size: |
700*550*500mm |
Frequency: |
40KHz |
Applicable Industries: |
Machinery Repair Shops, Home Use, Retail |
Cleaning Type: |
Immersion / Soak |
Warranty: |
1 Year |
Use: |
Degreasing |

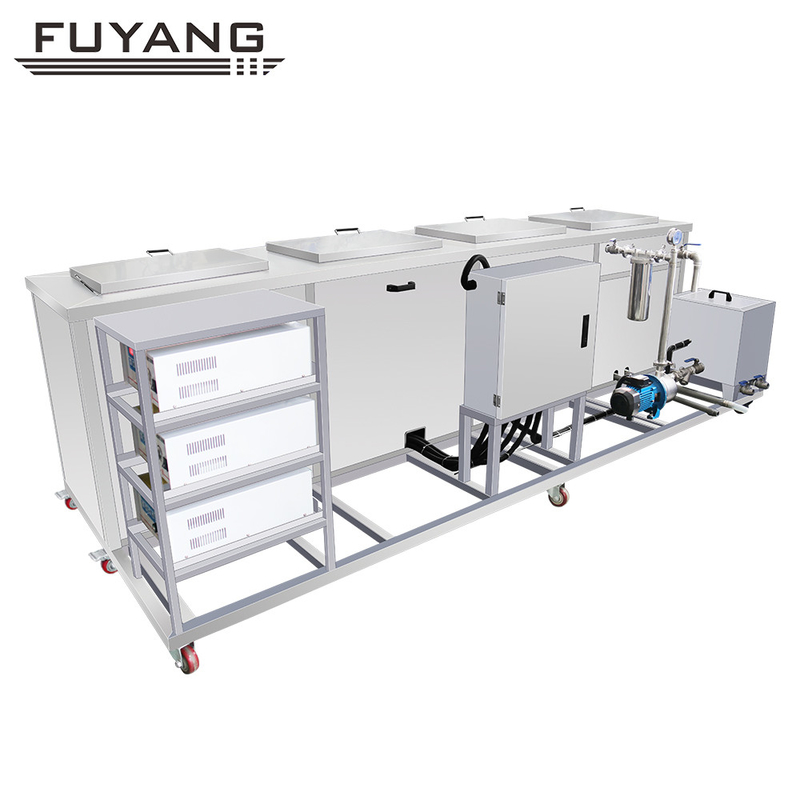

FUYANG 40KHz 192L Four Tank Automotive Ultrasonic Cleaner For Car Engine Parts
Specifications for ultrasonic cleaner F-4048 | |
Model | F-4048 |
Each Tank capacity | 192L |
Tank Quantity | Four |
Each Tank size | 700*550*500mm |
Tank material | SUS304 |
Ultrasonic power | 2400W |
Heating power | 6000W |
Timer | 1-99h adjustable |
Heater | 0-95c adjustable |
Frequency | 40khz |
Control | Outside generator, more stable |
Voltage | 380V, 3phases |
Warranty | 1 year |
Packing | 1unit/wooden case |
Cleaning Process | Ultrasonic Cleaning+Ultrasonic Rinsing+filtration+Drying+dehydration |
ULTRASONIC CHARACTERISTICS
Ultrasonic cleaning uses cavitation bubbles induced by high frequency pressure (sound) waves to agitate a liquid. The agitation produces high forces on contaminants adhering to substrates like metals, plastics. glass, rubber, and ceramics. This action also penetrates blind holes, cracks, and recesses.
The intention is to thoroughly remove all traces of contamination tightly adhering or embedded onto solid surfaces. Water or other solvents can be used, depending on the type of contamination and the workplace. Contaminants may include dust, dirt, oil, pigments, rust, grease, algae, fungus, bacteria, lime scale, polishing compounds, flux agents, fingerprints, soot, wax and mold release agents, biological soils like blood, and so on.
Ultrasonic cleaning can be used on a wide range of shapes, sizes and materials, and may not require the part to be disassembled prior to cleaning. Objects must not be allowed to rest on the bottom of the device during the cleaning process, because that will prevent cavitation from taking place on the part of the object not in contact with water.
