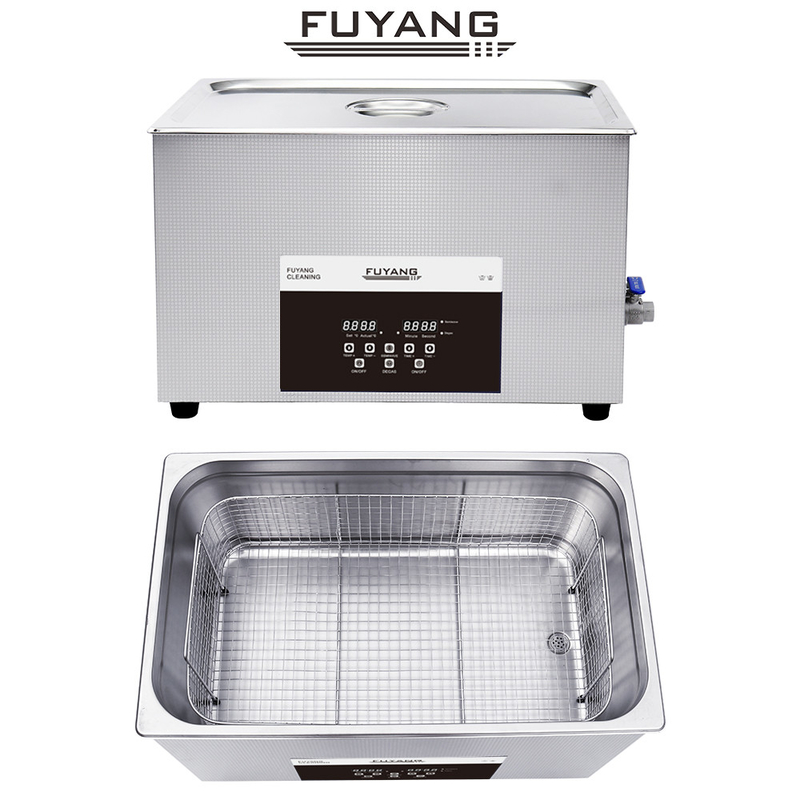

Customized Gallon Ultrasonic Parts Washer For Hinge 4.5L 300*150*100mm

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-030SD

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

Ultrasonic Parts Washer 4.5L

,

Hinge Ultrasonic Parts Washer

,

Gallon Ultrasonic Parts Washer

Model::
F-030S
Tank Volume:
4.5L
Tank Size:
300*150*100mm
G.W::
4.7kg
Ultrasonic Power::
180W
Cleaning Type:
Immersion / Soak
Model::
F-030S
Tank Volume:
4.5L
Tank Size:
300*150*100mm
G.W::
4.7kg
Ultrasonic Power::
180W
Cleaning Type:
Immersion / Soak
Description
Customized Gallon Ultrasonic Parts Washer For Hinge 4.5L 300*150*100mm

SUS304 4.5L can be customized Gallon Ultrasonic Parts Washer For Hinge

Specifications:



Model name F-030SD
Internal tank size 300*150*100mm
Application Clean Spray Flannel Mold
Function Removing dirts, oil, rust, grease
Feature No damage to precision mold
Tank capacity 4.5L
Ultrasonic power 180W
Heating power 150W
Time control 0~99 minutes
Temperature control 20~95℃
Water inlet / outlet Yes
Voltage 220V / 110V



Characteristics

Ultrasonic activity operates on similar principles to sound waves. As electrical energy is transferred to mechanical energy, it causes positive and negative pressure waves that generate microscopic bubbles that form on all surfaces throughout the component being cleaned. But these are no ordinary bubbles. The air bubbles in the fluid in ultrasonic cleaning equipment implode when they come into contact with a solid surface. This effect is known as cavitation. When the air bubbles implode, a powerful jet of fluid is created which comes into contact with the surfaces of the objects being cleaned at extremely high pressures and temperatures. This dynamic effect separates contaminants from all surfaces without damaging the object in any way. These micro-jet shock waves, combined with special ultrasonic cleaning solvents, remove bitumen, heavy oils, fats lime scale deposits and other (chemical) waste products in refineries much faster and more thoroughly than conventional methods (high pressure,steam, mechanical and chemical cleaning).
Usage: The system is developed to generate a faster and higher cleaning level by means of ultrasonic power, in combination with specialized chemicals (degradable). Due to the microscopic level a perfect inner and outer penetration will be created.


FAQ:
1. How about after sales services?
1 Year warranty for Skymen ultrasonic cleaner.
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.

2. What are the advantages of ultrasound over traditional cleaning methods?
Minimize the use of manual labor
Make cleaning and degreasing without the use of organic solvents
Clean hard to reach areas of products and remove all types of dirt
Shorten the processes such as extraction, dispersion, purification, chemical reactions
Eliminates costly mechanical and chemical cleaning of heat exchangers

3. What frequency is better for my parts?
Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
