Industrial 40KHz 192L Tank Ultrasonic Car Parts Cleaner Cold Water Cleaning

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-5048

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

Degreasing Ultrasonic Car Parts Cleaner

,

Cold Water Ultrasonic Car Parts Cleaner

,

192L Auto Parts Ultrasonic Cleaner

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
700*550*500mm
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Use:
Degreasing
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
700*550*500mm
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Use:
Degreasing
Description

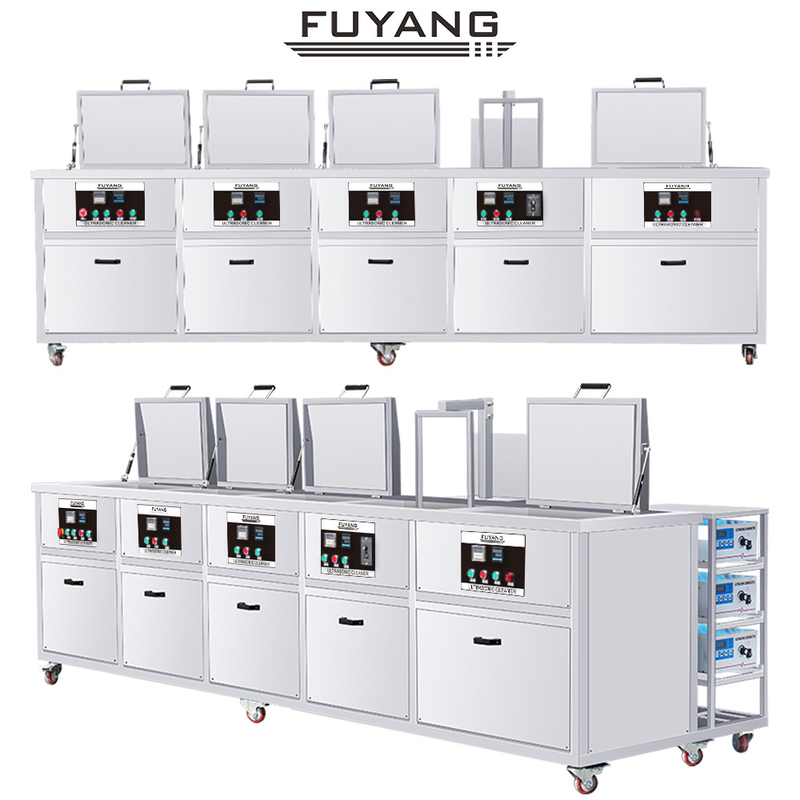

Industrial 40KHz 192L Tank Ultrasonic Car Parts Cleaner Cold Water Cleaning

FUYANG 40KHz 192L Five Tanks Ultrasonic Cleaning Equipment EMF For Auto Parts



Specification

Model F-5048
1st Tank Volume 192L Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 192L Ultrasonic Rinsng tank
3rd Tank Volume 192L Bubble rinse tank
4rd Tank Volume 192L Spray tank
5rd Tank Volume 192L Blast drying tank
Frenquency 40KHz
Drying System 1 set
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304
Power Supply AC 380V ,3 phase
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Same series with different size for your choice

Model
capacity
tank size(mm)
Ultrasonic power
F-5012
45L
500*300*300
700W
F-5018
61L
500X350X350
900W
F-5024
88L
550X400X400
1200W
F-5030
108L
600X450X400
1500W
F-5031
96L
800X300X400
1500W
F-5036
135L
600X500X450
1800W
F-5048
192L
700X550X500
2400W
F-5060
264L
800X600X550
3000W
F-5072
360L
1000*600*600
3600w



Product Description

Applications of Ultrasonic Cleaner

Ultrasonic Cleaning Machine has been widely used in Hardware, Electronics, Glasses, Jewelry, Optics, Clocks, Medical Dentistry, Health care institutions, Chemical, Automotive, Shipping, Aviation and Repair Industries.

Household supplies: Daily use of items such as gold and silver jewelry, jewelry, head ornaments, brooches, glasses, chains, pens, CDs, shaving knives, combs, dentures, tea tools and milk bottles, nipples, and fruits like grapes, cherries and strawberries. While cleaning the object, it can also be sterilized. In addition, ultrasound can also clean and care hands, to achieve the effect of skin beauty, enhance skin elasticity.

Electronic appliances: Switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fiber, Relay, capacitor, Alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.

Watches and Jewelry industry: Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on Jewelry, necklaces, jade articles, watches, glasses, etc.

Chemical and biological Industry: cleaning, disinfection and sterilization of chemical instrument and laboratory vessel. Assisted accelerate the emulsification, decomposition and extraction.

Automobile industry: Mainly remove oil, antiseptic, plastic residue, abrasive and graphite on Valve, ignition plug, fuel pump, oil tank, battery electrode, piston ring, machine control disc parts.

Optical Industry: Remove oil, sweat and ash on the Optical instruments and all kind of lens.

Aviation industry: Remove oxide, dust, rust, carbon and scale on fuel filter, flow control equipment, Gyroscopes, satellite and aviation hydraulic system

Electroplating industry: Remove grease, rust, phosphide on the Vernier caliper, fixture, spectacle frame, surgical instruments, dental tools, hardware, watch parts, metal structural parts such as fishing gear accessories

Printing and textile industry: Remove stains, ink mark, fingerprints, oil and dyestuff on the Rotary machine, spinneret, polyester filter core, textile spindle.

Power industry: Remove Ink, oil, dust, rust on the street lamp, electric power meter, bulb, teletype and insulation head

Vacuum ion plating products: Mainly cleaning oil stains, fingerprints, dust, oxides on Lenses, resin sheet, glass, lighting, arts and crafts before coating

Medical instruments: Mainly remove blood, gel, fingerprints, residues, proteins on Syringes, pipettes, glass containers, pacemakers, esophagoscopes, proctoscope, directional mirrors, artificial organs.

Precision machinery: Mainly remove Abrasives, iron filings, rust inhibitors, composites, cooling oils, polishing, oxides on Screws, nozzles, gears, springs, bearings, lead frames, production machinery, full enclosed compressors, heat exchangers, precision valves.



Product Description

The ultrasonic cleaner is a microprocessor-controlled device that uses ultrasonic or high frequency sound waves to clean jewelry and other delicate items. The vibration of ultrasonic wave in liquid will cause strong cavitation and emulsification. Millions of cavitation bubbles can be generated per second. Under the action of sound pressure, these bubbles are rapidly produced and continuously violent blasting, producing strong impact and suction force to remove stubborn dirt and kill bacteria and viruses.

Built-in powerful transducers can strengthen the ultrasonic power and make superior cleaning outcome. It is utilization of digital program in ultrasonic cleaner to control the unit, according to the quantity and condition of the items to be cleaned to choose a working cycle time. As a result, it is more convenient and efficient than hand wash, steam cleaners, high pressure water jet cleaning or other machines.

Advanced Brushed Stainless-Steel 304 Cleaning Tank to avoid corrosion water stain and keep the tank looking always new. (In comparison, the common stainless-steel cleaning tanks will be dirty yellow corrosion water stain on the surface after a long time of using, and it's hard to be removed.)



Feature of Ultrasonic Cleaner

Durable stainless-steel construction.

Ultrasonic cleaning and heating can work at the same time.

High efficiency cleaning for teeny blot particles.

CE, FCC and RoHS Approved.

Built-in Powerful Transducer can strengthen the ultrasonic power and make superior cleaning outcome.

Stainless steel cleaning basket for cleaning some small objects which need less friction, it can reduce the friction between the small objects and the tank.

Stainless steel tight fitting lid with handle to prevent water heat from diffusing.

Drains with Flow Control Valve for easy cleaning and rinsing

Skid proof rubber feet.

Use tap water only for general cleaning, you also can add about 5-10 ML of detergent into water to enhance wash result when needed.





Q: How Does Ultrasonic Cleaning Work?

A: Dirty items come clean in ultrasonic cleaning systems when millions of superheated bubbles scrub grime and oxidation away with stunning results. How? Through the process of de-cavitation.
Ultrasonic cleaning systems send high frequency sound waves ripping through an ultrasonic cleaning solution leaving superheated bubbles in the waves’ wake. When these bubbles, called cavitatons, collapse, called decavitation, the heat and energy of their implosions work with the specially formulated ultrasonic cleaning solution to remove dirt, oils, residue and oxidation from the surface of the contaminated item.
Imagine the ability to get into the tiniest of nooks and crannies where dirt and grime hide, and then imagine scrubbing that surface ultra clean. With conventional cleaning – brushes, rags and elbow grease – this task seems impossible. But the cavitating cleaning action of an ultrasonic cleaning system does just that – It goes where brush bristles can't.

Q: What Are The Components for Ultrasonic Cavitation and Cleaning?

A: Ultrasonic waves, heat and an ultrasonic cleaning solution are the three components at the heart of an ultrasonic cleaning system. Ultrasonic waves sonically cavitate and heat the ultrasonic cleaning solution, causing these three components work together creating an environment where dirt, grime and oxidation melt away from a dirty surface.
When the three components, ultrasonic waves, heat and ultrasonic cleaning solutions come together, ultrasonic cleaning produces jaw-dropping results. Ultrasonic cleaning is simply a superior form of cleaning that replaces hours of intensive labor and inferior cleaning results, and removes the need for flammable solvents.

Q: Are There Different Types Of Ultrasonic Cleaning Solutions?

A: Three types of ultrasonic cleaning solutions: mild alkaline, mild acid and solvent replacement. Which ultrasonic cleaning solution an ultrasonic cleaning process requires depends on what type of grime or deposit is being removed.
Mild alkaline ultrasonic cleaning solution is suited for the cleaning of oily parts. This agent works by breaking down the ionic bond that has formed between an oil and a metal. As the part is cleaned, the oil is dissolved and is dispersed into the liquid.
Mild acid ultrasonic cleaning solution is suited for removing rust and oxidation. An oxide remover, the mild acid solution is suited for applications where oxidation has coated the surface of the part.
Solvent replacement ultrasonic cleaning solution, or “shellac-buster”, removes rust, oxidation, carbons and oils. Shellac-busters are suitable for applications where a solvent like kerosene may have once been used. Solvent replacement agents are faster working than alkaline agents, and they perform in a similar fashion by breaking down ionic bonds and removing oxidation and are non-hazardous.
