960L 40KHz Large Industrial Single Tank Ultrasonic Cleaner With Large Capacity Low Noise

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-1144G

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

40KHz Single Tank Ultrasonic Cleaner

,

Low Noise Single Tank Ultrasonic Cleaner

,

Large Capacity Single Tank Ultrasonic Cleaner

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
1200*1000*800mm
Ultrasonic Cpower:
0~7200w
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
1200*1000*800mm
Ultrasonic Cpower:
0~7200w
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Description

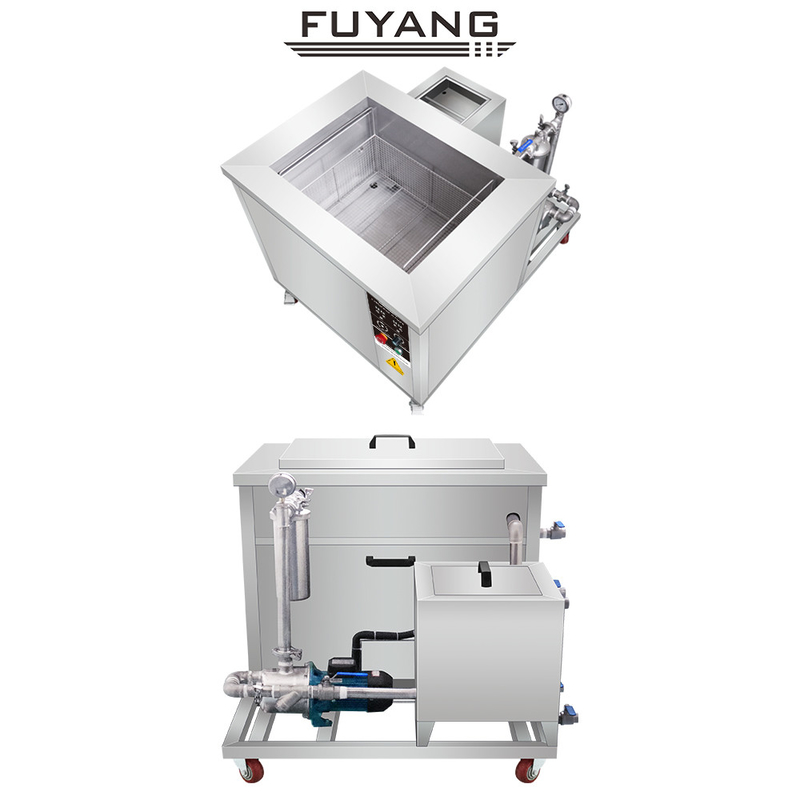

960L 40KHz Large Industrial Single Tank Ultrasonic Cleaner With Large Capacity Low Noise

40KHz 960L can be customized Large Industrial Ultrasonic Auto Parts Cleaner With Large Capacity , Low Noise

Specifications:

Model name F-1144G
Internal tank size 1200*1000*800mm
Application Clean Spray Flannel Mold
Function Removing dirts, oil, rust, grease
Feature No damage to precision mold
Tank capacity 960L
Ultrasonic power 0~7200w
Heating power 30kW
Time control 0~99 minutes
Temperature control 20~95℃
Water inlet / outlet Yes
Voltage 380v

Applications:

Laboratories field;

Medical field (such as surgical instrument);

Electronic parts field (such as PCB Board)

Car/motor/Aircraft parts field (such as engine block, radiator, etc.)
Industrial field;

In the production process of electronic devices, semiconductor materials, metals, and utensils must be cleaned. Cleaning is the process of removing various harmful substances adsorbed on the surfaces of semiconductor materials, metal materials, and production utensils. The cleaning method is to use an ultrasonic cleaner with a cleaning agent to desorb impurities from the surface of the object to be cleaned, thereby obtaining a clean surface.
Chemical cleaning mainly includes three aspects:
1. Surface cleaning of semiconductor materials
2. Cleaning of metal materials (including dopants) used in the production process
3. Cleaning of utensils and utensils used in the production process.



FAQ

Q1.How do I get the best ultrasonic cleaning?

There are many considerations important to ultrasonic cleaning. Optimizing these variables will produce the best cleaning. The most important decisions to be made are choosing the proper cleaning solution, cleaning at the right temperature for the correct amount of time, and choosing the right size and type of ultrasonic cleaner.



Q2.Can ultrasonic cleaning damage my parts?

With certain cautions, ultrasonic cleaning is considered safe for most parts. While the effects of thousands of implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. The most important cautionary consideration is the choice of cleaning solution. Potentially adverse effects of the detergent on the material being cleaned will be enhanced by the ultrasonic.



Q3.Why is a special solution required for cleaning?

Soils adhere to the parts... if they didn't, the soil would just fall off the parts! The purpose of the solution is to break the bond between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimize the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.



Q4.What cleaning solution should I use?

Modern ultrasonic cleaning solutions are compounded from a variety of detergents, wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to preclude undesirable reactivity with the part being cleaned.



Q5.What cleaning solution shouldn't I use?

Flammables or solutions with low flash points should never be used. The energy released by cavitation is converted to heat and kinetic energy, generating high temperature gradients in the solution, and can create hazardous conditions with flammable liquids. Acids, bleach and bleach by-products should generally be avoided, but may be used with indirect cleaning in a proper indirect cleaning container, such as a glass beaker, and appropriate care. Acid and bleach will damage stainless steel tanks, and/or create hazardous conditions.
