Product Details
Place of Origin: China
Brand Name: FUYANG
Certification: ce, RoHS
Model Number: F-5048
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: 1unit/carton box
Delivery Time: 5-7working days
Payment Terms: T/T
Supply Ability: 100PCS /DAY
Machine Type: |
Industrial Ultrasonic Cleaner |
Core Components: |
Motor, Industrial Sensor |
Cleaning Process: |
Cold Water Cleaning |
Material: |
Stainless Steel SUS304 |
Tank Size: |
700*550*500mm |
Applicable Industries: |
Machinery Repair Shops, Home Use, Retail |
Cleaning Type: |
Immersion / Soak |
Use: |
Degreasing |
Machine Type: |
Industrial Ultrasonic Cleaner |
Core Components: |
Motor, Industrial Sensor |
Cleaning Process: |
Cold Water Cleaning |
Material: |
Stainless Steel SUS304 |
Tank Size: |
700*550*500mm |
Applicable Industries: |
Machinery Repair Shops, Home Use, Retail |
Cleaning Type: |
Immersion / Soak |
Use: |
Degreasing |

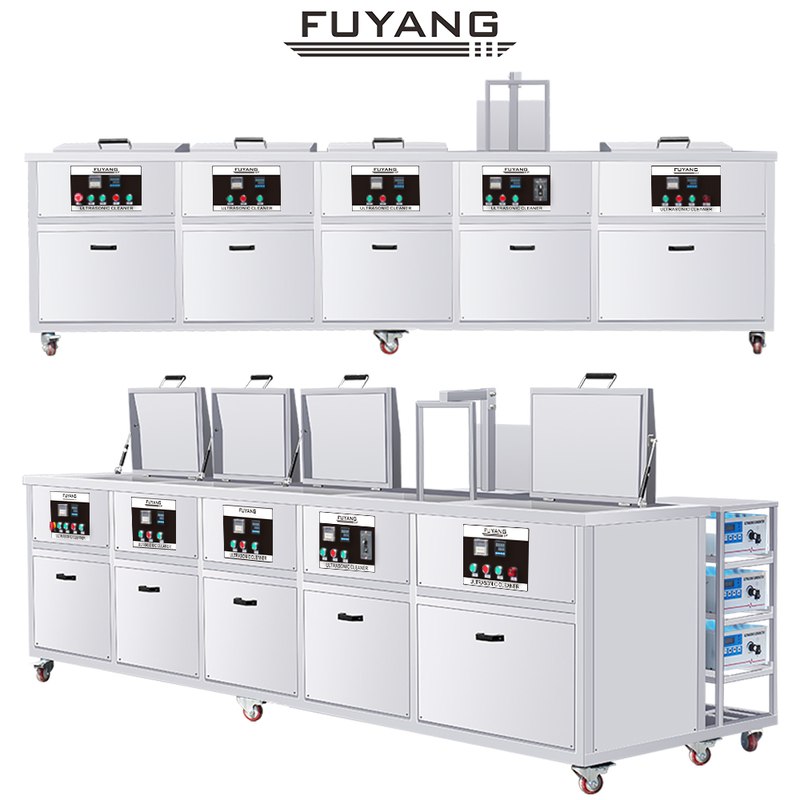

FUYANG 40KHz 192L Five Tanks Ultrasonic Cleaning Equipment EMF For Auto Parts
Specification
Model | F-5048 |
1st Tank Volume | 192L Ultrasonic Cleaning tank with filtration cycle system |
2nd Tank Volume | 192L Ultrasonic Rinsng tank |
3rd Tank Volume | 192L Bubble rinse tank |
4rd Tank Volume | 192L Spray tank |
5rd Tank Volume | 192L Blast drying tank |
Frenquency | 40KHz |
Drying System | 1 set |
Timer | 0~99 minutes adjustable |
Heater | Room temperature~99℃ adjustable |
Material | SUS 304 |
Power Supply | AC 380V ,3 phase |
Lead time | 18 working days |
Warranty | 1 year warranty period, technique support all time |
Certificates | CE, RoHS |
Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Applications of Ultrasonic Cleaner
Ultrasonic Cleaning Machine has been widely used in Hardware, Electronics, Glasses, Jewelry, Optics, Clocks, Medical Dentistry, Health care institutions, Chemical, Automotive, Shipping, Aviation and Repair Industries.
Household supplies: Daily use of items such as gold and silver jewelry, jewelry, head ornaments, brooches, glasses, chains, pens, CDs, shaving knives, combs, dentures, tea tools and milk bottles, nipples, and fruits like grapes, cherries and strawberries. While cleaning the object, it can also be sterilized. In addition, ultrasound can also clean and care hands, to achieve the effect of skin beauty, enhance skin elasticity.
Electronic appliances: Switch, integrated circuit, electronic circuit board, semiconductor element, silicon chip, quartz crystal, magnetic head, magnetic tape, optical fiber, Relay, capacitor, Alarm, memory, LCD, Solder, oil stains, turpentine, preservatives, paraffin, oxide, rust on the hard disk components.
Watches and Jewelry industry: Remove paint, spray paint, compound, oil sludge, dust, oxide layer, polishing paste on Jewelry, necklaces, jade articles, watches, glasses, etc.
Q1.How do I get the best ultrasonic cleaning?
There are many considerations important to ultrasonic cleaning. Optimizing these variables will produce the best cleaning. The most important decisions to be made are choosing the proper cleaning solution, cleaning at the right temperature for the correct amount of time, and choosing the right size and type of ultrasonic cleaner.
Q2.Can ultrasonic cleaning damage my parts?
With certain cautions, ultrasonic cleaning is considered safe for most parts. While the effects of thousands of implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. The most important cautionary consideration is the choice of cleaning solution. Potentially adverse effects of the detergent on the material being cleaned will be enhanced by the ultrasonic.
Q3.Why is a special solution required for cleaning?
Soils adhere to the parts... if they didn't, the soil would just fall off the parts! The purpose of the solution is to break the bond between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimize the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.
Q4.What cleaning solution should I use?
Modern ultrasonic cleaning solutions are compounded from a variety of detergents, wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to preclude undesirable reactivity with the part being cleaned.
