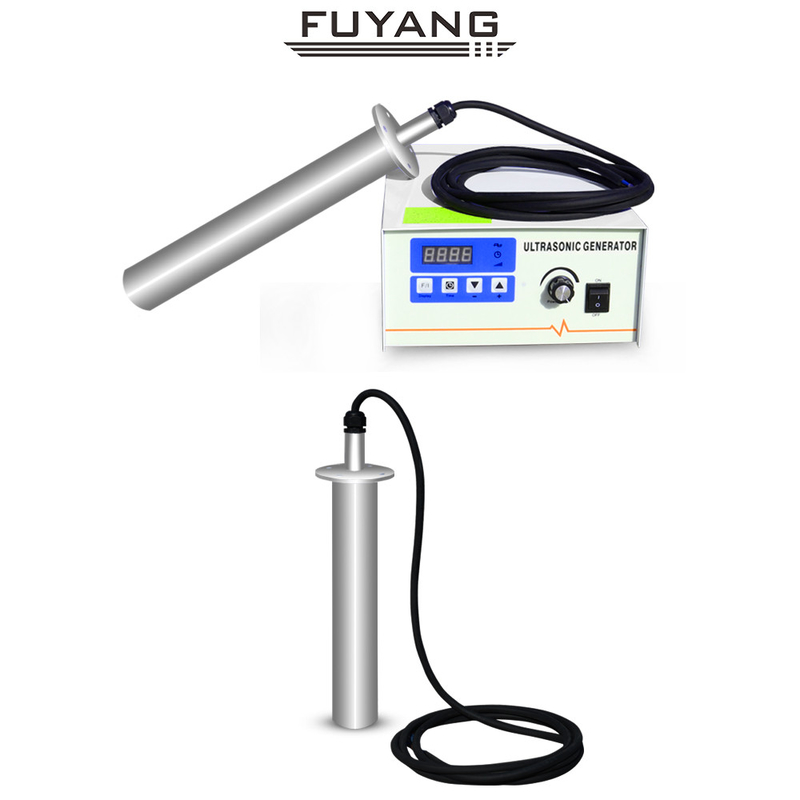

FUYANG Submersible Ultrasonic Transducer 1800W 40khz Stainless Steel SUS304

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-136

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

Submersible Ultrasonic Transducer 1800W

,

40khz Submersible Ultrasonic Transducer

Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Length:
1800mm
Material:
Stainless Steel SUS304
Frequency:
40KHz
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Length:
1800mm
Material:
Stainless Steel SUS304
Frequency:
40KHz
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Description
FUYANG Submersible Ultrasonic Transducer 1800W 40khz Stainless Steel SUS304

1800W 40 khz FUYANG Ultrasonic Immersed Transducer Box For Oil Dispersed chemical reactions

Product Description

Advantage



1. Ultrasonic cavitation occurs around the vibrating rod, and the ultrasonic energy is distributed very evenly around the rod.

2. The power output of the ultrasonic vibrator is not affected by the changes in the liquid level, tank capacity, and temperature difference, and the power output is stable and uniform.

3, ultrasonic transducer bar work life span is more than 1.5 times as traditional ultrasonic transducers box;

4. Ultrasonic transducer bar with round tube design makes it easy to install and use

5. ultrasonic immersible transducer bar is absolutely waterproof, safe to use.



Features:

1. With high ultrasonic power

  • Multi frequency optional
  • 1mm SUS304 material
  • 60W industrial ultrasonic transducer
  • it can work continuously
  • with separate generator control
  • multi function: Clean, emulsification, separation, homogenization, extraction, catalysis, defoaming, stirring
  • long working life






Same models with different capacity



Model Length(mm) Frequency(KZh) Ultrasonic power
F-103 180 40 150W
F-106 330 40 300W
F-109 480 40 450W
F-112 630 40 600W
F-115 780 40 750W
F-118 930 40 900W
F-121 1060 40 1050W
F-124 1200 40 1200W
F-127 1360 40 1350W
F-130 1530 40 1500W
F-133 1680 40 1650W
F-136 1830 40 1800W
