40KHz 88L Customized Industrial Ultrasonic Washing Machine SUS304
40KHz 88L Customized Industrial Ultrasonic Washing Machine SUS304
40KHz 88L Customized Industrial Ultrasonic Washing Machine SUS304

40KHz 88L Customized Industrial Ultrasonic Washing Machine SUS304

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-3024

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

88L industrial ultrasonic washing machine

,

40KHz industrial ultrasonic washing machine

,

40KHz industrial ultrasonic parts washer

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Tank Size:
550*400*400mm
Frequency:
40KHz
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Tank Size:
550*400*400mm
Frequency:
40KHz
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Description

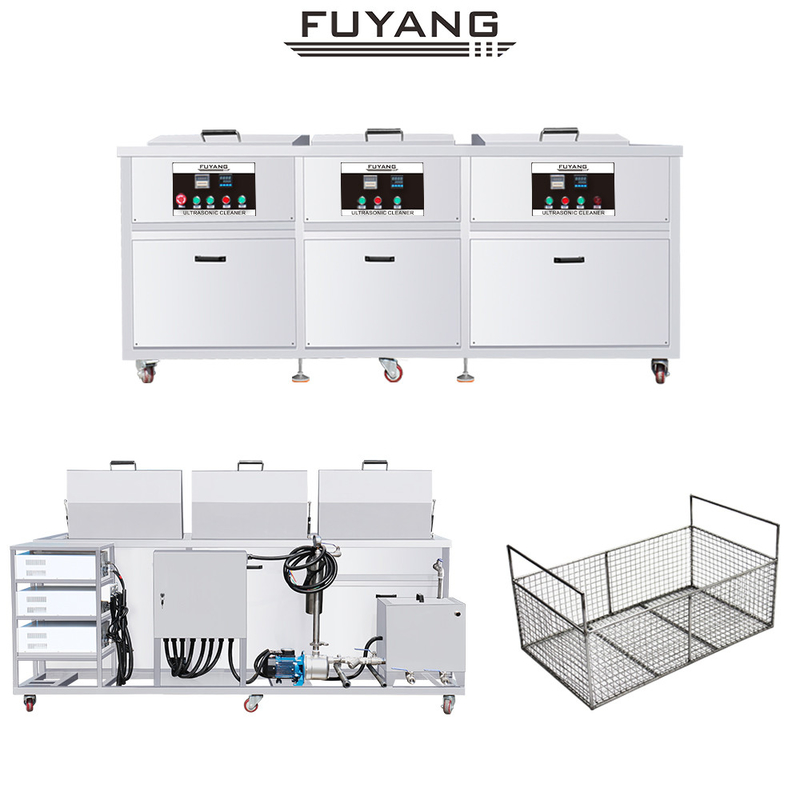

40KHz 88L Customized Industrial Ultrasonic Washing Machine SUS304

88L SUS304 can be customized Industrial Ultrasonic Cleaner Washer

Specification

Model F-3024
1st Tank Volume 88L Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 88L Ultrasonic Rinsng tank
3rd Tank Volume 88L Drying tank
1st tank size 550X400X400mm
2nd tank size 550X400X400mm
3rd Tank size 550X410X400mm
Ultrasonic Power 1200W*2
Heating Power of Ultrasonic tank 3000W*2
Heating Power of Drying tank 3000W
Frenquency 40KHz
Drying System 1 set
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304
Power Supply AC 380V 3 phase
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Same series with different size for your choice:

Model
capacity
tank size(mm)
Ultrasonic power
F-3012
45L
500*300*300
700W
F-3018
61L
500X350X350
900W
F-3024
88L
550X400X400
1200W
F-3030
108L
600X450X400
1500W
F-3031
96L
800X300X400
1500W
F-3036
135L
600X500X450
1800W
F-3048
192L
700X550X500
2400W
F-3060
264L
800X600X550
3000W
F-3072
360L
1000*600*600
3600W





Applications:



Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.



Industrial cleaning equipment, ultrasonic cleaning machines are widely used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.Applications

Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.



Industrial cleaning equipment, ultrasonic cleaning machines are widely used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.

FUYANG ultrasonic cleaner working theory:



Ultrasonic cleaning baths for cleaning engine parts such as cylinder heads, engine blocks, etc. in garage- and overhaul companies.

Removing oil, grease and carbon contamination is essential for a quality revision. Not only the sight surfaces but also the oil and cooling channels are thoroughly cleaned.

The ultrasonic cleaning system depicted here with lift is specially developed for the cleaning of cylinder heads of both passenger cars, trucks, buses and agricultural vehicles.

The dimensions of the elevator plateau, with oscillation to increase the rinse operation in the channels, be such that the larger cylinder heads also fit on it. The hinged cover is an integral part with the elevator which means the elevator in the upper stand, lid open and at the bottom stand cover closed.



FUYANG Benefits:



Gently moves parts to assist with cleaning

Remove all components for next operation

Reduces/replaces hazardous cleaning solvents

Micro-clean parts reduces part failures

Lower labor costs - Increased profits

Remove all contaminants without damage the parts/instruments.
