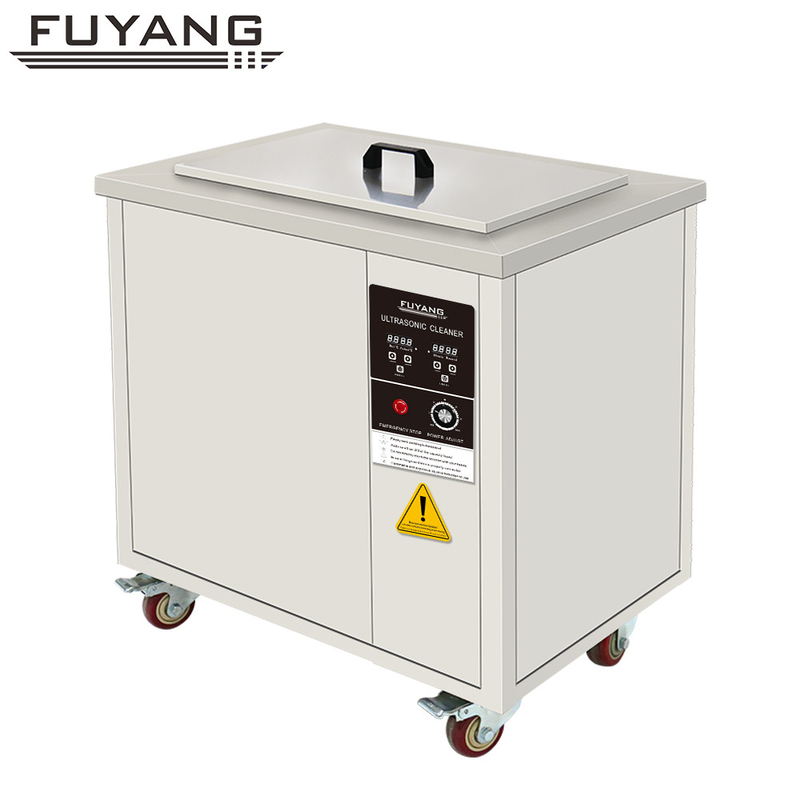

Casters 560L 40KHz Industrial Ultrasonic Cleaning Equipment Stainless Steel Single Tank

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-900A

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

Single Tank Industrial Ultrasonic Cleaning Equipment

,

Casters Industrial Ultrasonic Cleaning Equipment

,

560L Stainless Steel Ultrasonic Cleaner

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
1000*600*600mm
Frequency:
40KHz
Ultrasonic Cpower:
4500W
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
1000*600*600mm
Frequency:
40KHz
Ultrasonic Cpower:
4500W
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Description
Casters 560L 40KHz Industrial Ultrasonic Cleaning Equipment Stainless Steel Single Tank

Stainless Steel 560L 40KHz Industrial Injector Ultrasonic Cleaner Single Tank Casters

Specifications:

Same models with different capacity

Model capacity tank size(mm) Ultrasonic power
F-120ST 38L 500*300*250 600W
F-120 45L 500*300*300 700W
F-180 53L 500X350X300 900W
F-240 77L 550X400X350 1200W
F-300 99L 550X450X400 1500W
F-301 96L 800X300X400 1500W
F-360 135L 600X500X450 1800W
F-480 175L 700X500X500 2400W
F-600 264L 800X600X550 3000W
F-720 360L 1000*600*600 3600W

























Features of the machine:

• Low maintainence machine

• Heavy duty cleaning systems

• Chemical friendly- SS Rust proof body

• Industrial guage farication, build to last

• One year warrenty on any manufacturing defect

• Completely customized to suit the cleaning requirement

• Less human interfearance and less scope of error

• Accurate and uniform cleaning everytime

How the System Operates:

The system operates in the following manner:

  • Parts are placed into the tank using the included stainless steel basket or other holding fixture.
  • Once submerged, the START button is pressed, and the cover is closed. The ultrasonic system turns on, and the filter system turns off automatically. Parts are cleaned with the CROSSFIRE ultrasonic system at this time.
  • The system will automatically turn off upon completion of the cycle.
  • Operators can then return when the parts are clean.
  • The cover is opened and the batch of parts is placed onto the basket rest. Dripping liquids are directed back to the ultrasonic cleaning tank
  • What is Ultrasonic Cleaning

In a process termed "cavitation", micron-size bubbles form and grow due to alternating positive and negative pressure waves in a solution. The bubbles subjected to these alternating pressure waves continue to grow until they reach resonant size. Just prior to the bubble implosion, there is a tremendous amount of energy stored inside the bubble itself. Temperature inside a cavitating bubble can be extremely high, with pressures up to 500 atm. The implosion event, when it occurs near a hard surface, changes the bubble into a suction jet about one-tenth the bubble size, which travels at speeds up to 400 km/hr away from the hard surface. With the combination of pressure, temperature, and velocity, the jet frees contaminants from their bonds with the substrate. Because of the inherently small size of the jet and the relatively large energy, ultrasonic cleaning has the ability to reach into small crevices and remove entrapped soils very effectively

What is cavitation?

"Cavitation" is the rapid formation and collapse of millions of tiny bubbles (or cavities) in a liquid. Cavitation is produced by the alternating high and low pressure waves generated by high frequency (ultrasonic) sound. During the low pressure phase, these bubbles grow from microscopic size until, during the high pressure phase where they are compressed and implode.
