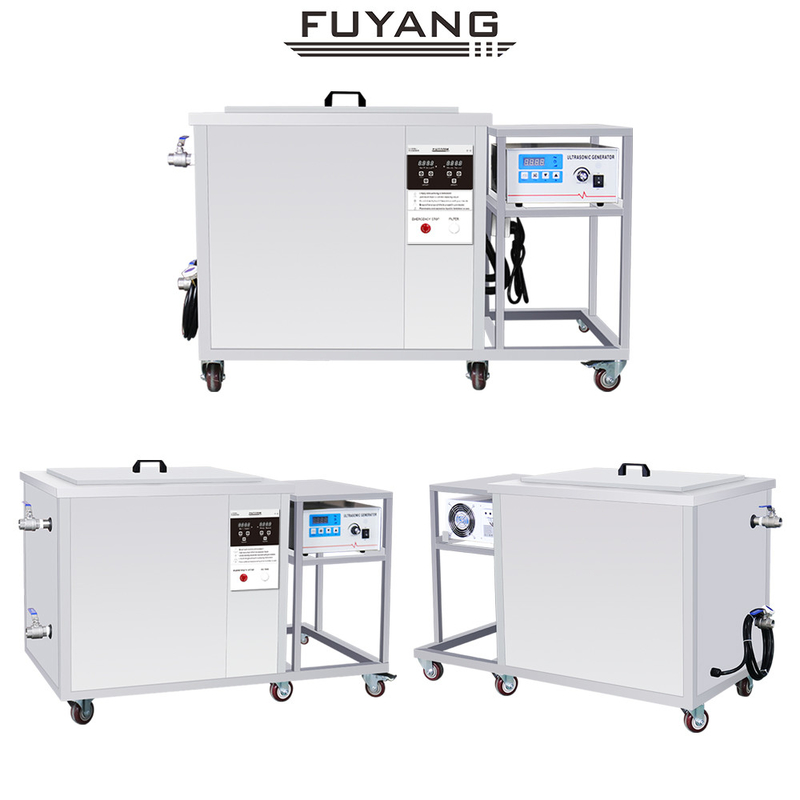

Customized Single Tank Stainless Ultrasonic Cleaner Casters 560l 40khz

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-900

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

rohs large industrial ultrasonic cleaner

,

560l stainless ultrasonic cleaner

,

stainless ultrasonic cleaner 40khz

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor
Cleaning Process:
Cold Water Cleaning
Tank Size:
1000*600*600mm
Weight (KG):
50 Kg
Ultrasonic Cpower:
4500W
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor
Cleaning Process:
Cold Water Cleaning
Tank Size:
1000*600*600mm
Weight (KG):
50 Kg
Ultrasonic Cpower:
4500W
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Description
Customized Single Tank Stainless Ultrasonic Cleaner Casters 560l 40khz

Stainless Steel 560L 40KHz can be customized Industrial Injector Ultrasonic Cleaner Single Tank Casters

Specifications:



Model name F-900
Internal tank size 1000*800*700mm
Application Clean Spray Flannel Mold
Function Removing dirts, oil, rust, grease
Feature No damage to precision mold
Tank capacity 560L
Ultrasonic power 2400W
Heating power 9000W
Time control 0~99 minutes
Temperature control 20~95℃
Water inlet / outlet Yes
Voltage 220V / 110V

Model capacity tank size(mm) Ultrasonic power
F-120ST 38L 500*300*250 600W
F-120 45L 500*300*300 700W
F-180 53L 500X350X300 900W
F-240 77L 550X400X350 1200W
F-300 99L 550X450X400 1500W
F-301 96L 800X300X400 1500W
F-360 135L 600X500X450 1800W
F-480 175L 700X500X500 2400W
F-600 264L 800X600X550 3000W
F-720 360L 1000*600*600 3600W



























How Do Ultrasonic Cleaners Work?

A simple way that ultrasonic cleaners work is likening them to an automatic dishwasher, but with some added refinements. An automatic dishwasher, much the same as an ultrasonic cleaner, combines water and a detergent to remove grease, grime and other contaminants from objects being cleaned.

Applications for ultrasonic cleaners include cleaning precision optics and laboratory glassware. Instead of cleaning pots and pans and bowls, ultrasonic cleaners most often are used to clean various other metal and plastic products difficult or impossible to clean by other methods.

Components of an Ultrasonic Cleaner

Tanks to hold the cleaning solution. Tanks should be of stainless steel; their volume depends on the size of objects being cleaned

Ultrasonic transducers that create the cavitation and that are bonded to the bottom of the tank

A generator to power the transducers

Controls that range from a simple on-off switch to sophisticated microprocessors that govern cleaning time, sweep, pulse, degassing, temperature, ultrasonic frequency , ultrasonic power, auto safety shutoffs and other refinements. More on these below.

What Do Ultrasonic Transducers Do?

There are two basic types of transducers; piezoelectric (a.k.a. electrostrictive) or magnetostrictive, but their function is the same. They are excited by electric current provided by the ultrasonic cleaner's generator to vibrate at ultrasonic frequencies that cause the bottom (and sides as the case can also be) of the tank to vibrate and thus serve as a membrane. This vibration forms the vacuum bubbles that implode, (not explode) on contact with items in the ultrasonic cleaner tank thereby blasting loose and carrying away contaminants. There are also immersible transducers. Ultrasonic frequency is an important part of how ultrasonic cleaners work and is discussed next.
