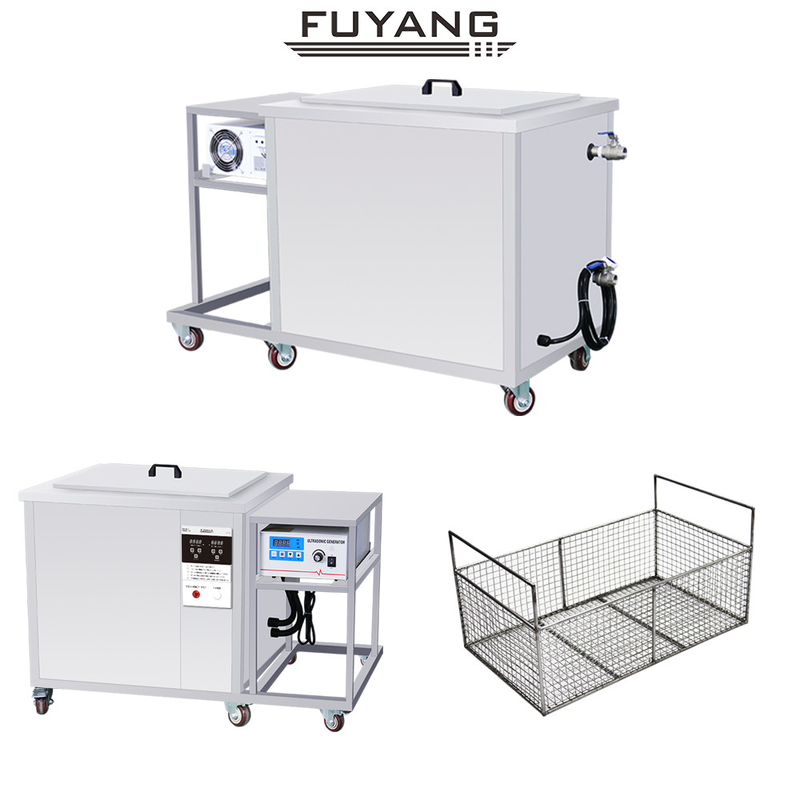

264l 40khz Stainless Steel Ultrasonic Cleaner General Lab Unit 3kw

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-600A

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

264l stainless steel ultrasonic cleaner

,

3kw stainless steel ultrasonic cleaner

,

40khz stainless ultrasonic cleaner

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
800*600*550mm
Frequency:
40KHz
Weight (KG):
50 Kg
Ultrasonic Cpower:
3000W
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
800*600*550mm
Frequency:
40KHz
Weight (KG):
50 Kg
Ultrasonic Cpower:
3000W
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Description
264l 40khz Stainless Steel Ultrasonic Cleaner General Lab Unit 3kw

Stainless Steel 192L 40KHz Industrial Ultrasonic Cleaner For Plastic Mold Injection Mold Die Casting Mold

Specifications:

Model name F-600
Internal tank size 800*600*550mm
Application Clean Spray Flannel Mold
Function Removing dirts, oil, rust, grease
Feature No damage to precision mold
Tank capacity 264L
Ultrasonic power 3000W
Heating power 7000W
Time control 0~99 minutes
Temperature control 20~95℃
Water inlet / outlet Yes
Voltage 220V / 110V

Same models with different capacity

Model capacity tank size(mm) Ultrasonic power
F-120ST 38L 500*300*250 600W
F-120 45L 500*300*300 700W
F-180 53L 500X350X300 900W
F-240 77L 550X400X350 1200W
F-300 99L 550X450X400 1500W
F-301 96L 800X300X400 1500W
F-360 135L 600X500X450 1800W
F-480 175L 700X500X500 2400W
F-600 264L 800X600X550 3000W
F-720 360L 1000*600*600 3600W

























Why an Ultrasonic Cleaner is Ideal for Aircraft Parts

In three words: thorough, safe and fast. Contaminants missed by manual cleaning are usually those deep in crevices and on other surfaces impossible to reach. Moreover, highly finished mold surfaces can be scratched or otherwise damaged by manual processes. Large molds can be difficult to maneuver, further risking damage during manual cleaning. And the longer it takes to clean the molds the greater the risk of damage.

Ultrasonic cleaning action solves all three issues.

It is thorough because it reaches all mold surfaces immersed in a biodegradable water-based ultrasonic cleaning solution. It is safe because while the cleaning action can be termed “violent” it occurs so fast that highly polished injection mold surfaces are not damaged during the cleaning process. By fast we mean 10 to 15 minutes although large complex molds may require a longer cleaning cycle.



Aircraft Parts Cleaning by Cavitation Action

Cavitation action is described as the implosion of countless minute bubbles against surfaces of products immersed in the cleaning solution. Bubbles are created when generator-powered transducers bonded to the ultrasonic cleaner tank vibrate at ultrasonic frequencies measured in thousands of cycles per second or kilohertz (kHz).

Selecting the cleaning equipment is governed to a large extent by the size of molds being cleaned. Ultrasonic cleaners are available ranging from small benchtop units to industrial-sized floor-mounted equipment that can be fitted for automated cleaning and rinsing cycles. But do select a cleaner with a heater, timer and sweep mode.
