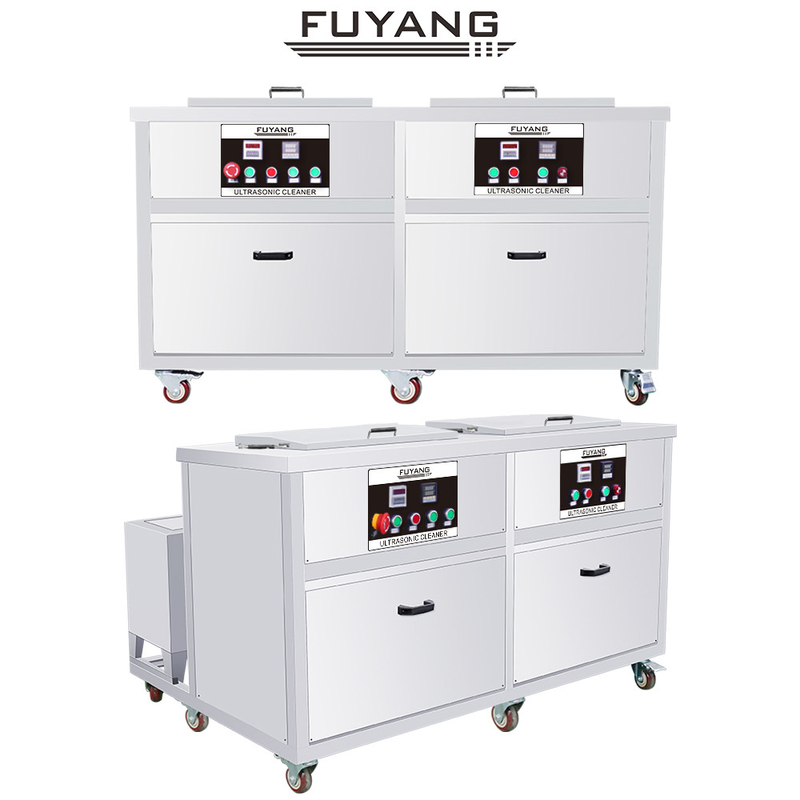

1200w Dual Slot Engine Ultrasonic Cleaner 88 Liter With SUS Basket

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-2024

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

1200w Engine Ultrasonic Cleaner

,

SUS Basket Engine Ultrasonic Cleaner

,

88 Liter Engine Ultrasonic Cleaner

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
550X400X400
Frequency:
40KHz
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
550X400X400
Frequency:
40KHz
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Description
1200w Dual Slot Engine Ultrasonic Cleaner 88 Liter With SUS Basket

1200w Dual Slot Engine Ultrasonic Cleaner 88Liter 20-95℃ Adjustable With SUS Basket



88Liter 1200w Dual Slot Stainless Steel Ultrasonic Cleaner Machine Dring Tank

Model F-2024
Dual Tank Ultrasonic Tank Dry tank
Tank Dimension 550x400x400mm 550x400x400mm
Tank capacity 88L 88L
Ultrasonic power 1800W --
Heating power 3000W --
Drying power -- 3000W
Ultrasonic frequency 40KHZ
Tank material SUS304
Tank thickness 2.5mm
Timer 1S-99hours adjustable
Heater 20-95℃ adjustable
Drain valve 1 inch
Basket & Lid standard equipped
Machine Voltage 380V,3phases
Features

1. with SUS basket, lid

2. with casters with brake

3. 1 year warranty & tech support for life

Attentions:

a)While the machine is working normally, ultrasonic and tank syntony gives a well-proportioned sound, and no shudder on the surface of the water, yet there is spray made by the tiny bubbles. If there are discontinuous surges, please add or release a little of washing solution in the tank, stopping the surges is good for cleaning the objects.



b)On the condition of make sure the cleaning object is cleaned, please run the machine discontinuously as far as possible(not more than 30min.),for long-time running causes temperature increment of the case, and speedup the aging of the electronic devices.



c)Flammable cleaning solution is forbidden.



d)Do not start the heater nor ultrasonic while the tank is empty.



e)Prevent water or cleaning liquid from spattering into the case or shaker.



f)When something is dropped into the tank carelessly, take it out immediately.



g)Make sure the washing liquid is not hot, and turn the ultrasonic off and pull out the plug, while changing or emptying the tank.



h)Clean the dirt in the tank after using.



i)Keep the surface of the machine clean.



When the machine is broken or the ultrasonic weakens, it may be caused by above reasons, please stop operating the machine and contact maintenance staff.

Q1.How do I get the best ultrasonic cleaning?

There are many considerations important to ultrasonic cleaning. Optimizing these variables will produce the best cleaning. The most important decisions to be made are choosing the proper cleaning solution, cleaning at the right temperature for the correct amount of time, and choosing the right size and type of ultrasonic cleaner.



Q2.Can ultrasonic cleaning damage my parts?

With certain cautions, ultrasonic cleaning is considered safe for most parts. While the effects of thousands of implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. The most important cautionary consideration is the choice of cleaning solution. Potentially adverse effects of the detergent on the material being cleaned will be enhanced by the ultrasonic.

Q3.Why is a special solution required for cleaning?

Soils adhere to the parts... if they didn't, the soil would just fall off the parts! The purpose of the solution is to break the bond between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimize the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.

Q4.What cleaning solution should I use?

Modern ultrasonic cleaning solutions are compounded from a variety of detergents, wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to preclude undesirable reactivity with the part being cleaned.

Q5.What cleaning solution shouldn't I use?

Flammables or solutions with low flash points should never be used. The energy released by cavitation is converted to heat and kinetic energy, generating high temperature gradients in the solution, and can create hazardous conditions with flammable liquids. Acids, bleach and bleach by-products should generally be avoided, but may be used with indirect cleaning in a proper indirect cleaning container, such as a glass beaker, and appropriate care. Acid and bleach will damage stainless steel tanks, and/or create hazardous conditions.
