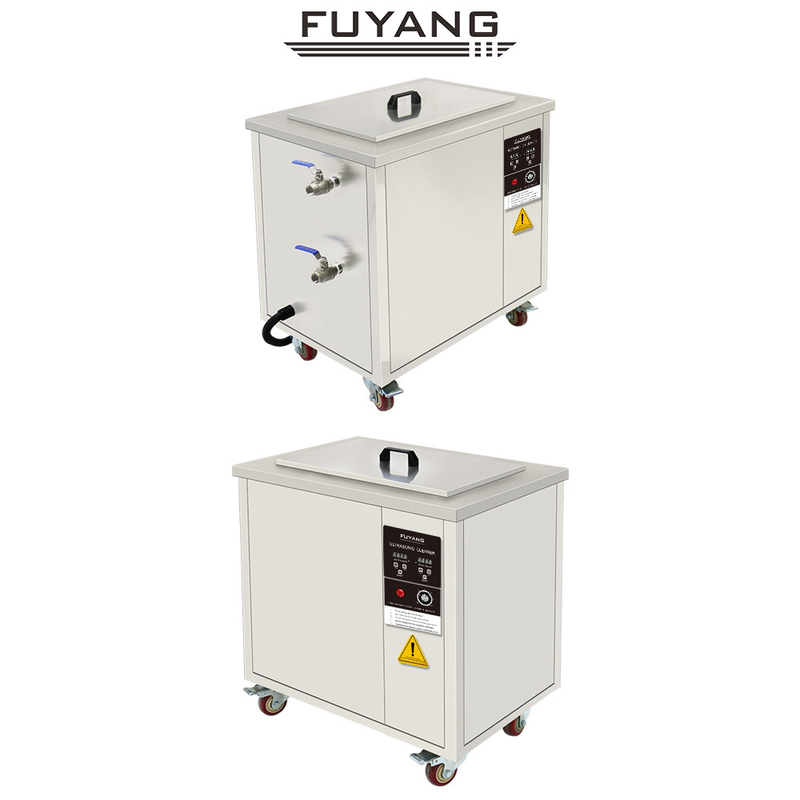

Stainless Steel 96L 3000W customizable Industrial Ultrasonic Cleaner
Specifications:
Model name | F-301 |
Internal tank size | 800*300*400mm |
Application | Clean Spray Flannel Mold |
Function | Removing dirts, oil, rust, grease |
Feature | No damage to precision mold |
Tank capacity | 96L |
Ultrasonic power | 1500W |
Heating power | 3000W |
Time control | 0~99 minutes |
Temperature control | 20~95℃ |
Water inlet / outlet | Yes |
Voltage | 220V / 110V |
FUYANG ultrasonic cleaner machine application
Industry | Cleaning objects |
jewelry | Jewelry, diamond, gold, silver products, |
machinery | Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools |
electronics | PCB board, electronic parts, TV parts, computer parts |
Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder, valve |
Dental& Medical | dental tools, medical tools, injector, surgery tools, dropper, glass container |
Plating& painting | polishing parts, SUS cutter, tableware, plating |
Food industry | Oven tray, boiler, bottles, bottle cap, filters |
Optical& watch maker | optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond, watch band, watch cover, watch hand |
textile | spinneret plate, rubber parts, plastic molds, toy |
others |
seal, flapper, coins, pottery, bank card, IGBT |
In a process termed "cavitation", micron-size bubbles form and grow due to alternating positive and negative pressure waves in a solution. The bubbles subjected to these alternating pressure waves continue to grow until they reach resonant size. Just prior to the bubble implosion, there is a tremendous amount of energy stored inside the bubble itself. Temperature inside a cavitating bubble can be extremely high, with pressures up to 500 atm. The implosion event, when it occurs near a hard surface, changes the bubble into a suction jet about one-tenth the bubble size, which travels at speeds up to 400 km/hr away from the hard surface. With the combination of pressure, temperature, and velocity, the jet frees contaminants from their bonds with the substrate. Because of the inherently small size of the jet and the relatively large energy, ultrasonic cleaning has the ability to reach into small crevices and remove entrapped soils very effectively
What is cavitation?
"Cavitation" is the rapid formation and collapse of millions of tiny bubbles (or cavities) in a liquid. Cavitation is produced by the alternating high and low pressure waves generated by high frequency (ultrasonic) sound. During the low pressure phase, these bubbles grow from microscopic size until, during the high pressure phase where they are compressed and implode.
FAQ:
Q:What are the advantages of FUYANG ultrasonic cleaner over traditional cleaning methods?
A:1.minimize the use of manual labor
· 2.make cleaning and degreasing without the use of organic solvents
· 3.clean hard to reach areas of products and remove all types of dirt
·4.shorten the processes such as extraction, dispersion, purification, chemical reactions
·5. eliminates costly mechanical and chemical cleaning of heat exchangers
Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.
Q: What cleaning solution should I use?
A:A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.
