Large Industrial Ultrasonic Cleaning Bath SUS304 192L 700*550*500mm

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-3048

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

Large Ultrasonic Cleaning Bath

,

Ultrasonic Cleaning Bath 192L

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
700*550*500mm
Frequency:
40KHz
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
700*550*500mm
Frequency:
40KHz
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Description

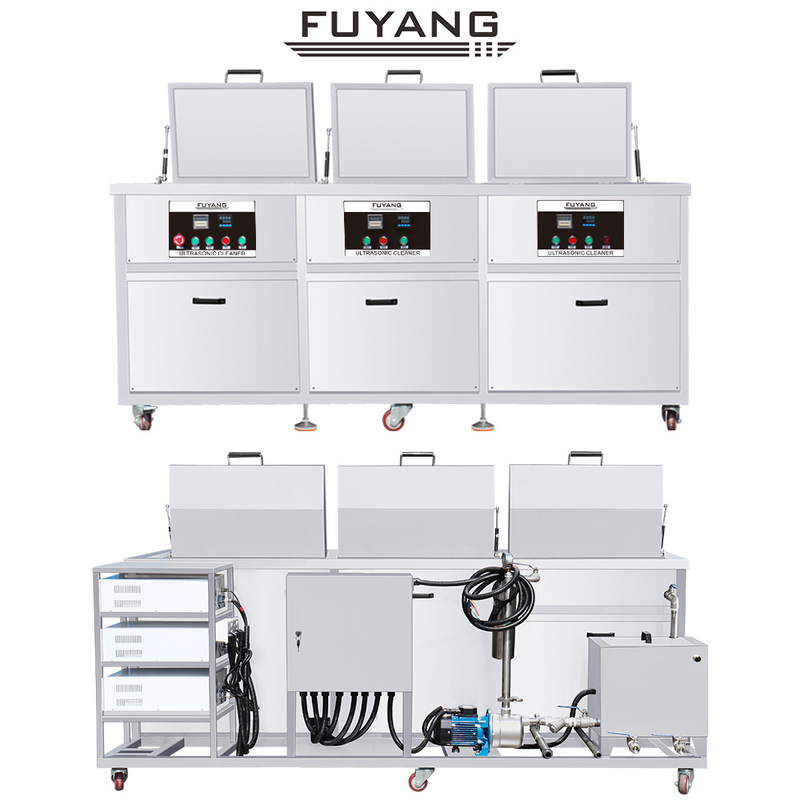

Large Industrial Ultrasonic Cleaning Bath SUS304 192L 700*550*500mm

SUS304 192L Large Industrial Ultrasonic Cleaning Bath For Plastic Moulds Washing With Rinsing / Filter / Dryer

Specification

Model F-3036
1st Tank Volume 135L Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 135L Ultrasonic Rinsng tank
3rd Tank Volume 135L Drying tank
1st tank size60 700X550X500mm
2nd tank size 700X550X500mm
3rd Tank size 700X550X500mm
Ultrasonic Power

2400W*2

Heating Power of Ultrasonic tank 6000W*2
Heating Power of Drying tank 60000W
Frenquency 40KHz
Drying System 1 set
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304
Power Supply AC 380V 3 phase
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Same series with different size for your choice:

Model
capacity
tank size(mm)
Ultrasonic power
F-3012
45L
500*300*300
700W
F-3018
61L
500X350X350
900W
F-3024
88L
550X400X400
1200W
F-3030
108L
600X450X400
1500W
F-3031
96L
800X300X400
1500W
F-3036
135L
600X500X450
1800W
F-3048
192L
700X550X500
2400W
F-3060
264L
800X600X550
3000W
F-3072
360L
1000*600*600
3600W





Why FUYANG Ultrasonic Cleaner Is Different In Cleaning Truck Parts?



1.  FUYANG ultrasonic cleaner can clean every detail of your truck parts including blind hole.



2. Your truck parts will be cleaned much fatster and safer if you use FUYANG ultrasonic cleaner.



3. Three workers spent four hours cleaning truck parts will no longer exsist if you use FUYANG ultrasonic cleaner.



4. Your workers will not need to touch harmful detergent any more if you choose FUYAYANGultrasonic cleaner.



5. It is much more enviromental cleaning method for you to clean parts with ultrasonic cleaner.



FAQ:

1. What is Ultrasonics?

The science of ultrasonics is the study and application of mechanical vibrations above the range of human hearing—typically greater than 18,000 HZ.

2. What is Ultrasonic Cleaning?

Ultrasonic cleaning uses ultrasonic energy in an immersion cleaning tank to assist in the removal of tenacious or stubborn soils from parts. An ultrasonic system always consists of at least three main components:

1. A tank to hold the cleaning fluid and the dirty parts

2. A generator to transform the line voltage into an ultrasonic signal

3. Transducers to convert the ultrasonic electrical signal into mechanical energy

3. What is an Ultrasonic Generator?

The ultrasonic generator takes AC electrical energy from the power line and converts it to electrical energy alternating at the desired ultrasonic frequency. In addition, the ultrasonic generator may have complex circuitry which automatically tunes its output to the optimum operating frequency for the ultrasonic transducer.
