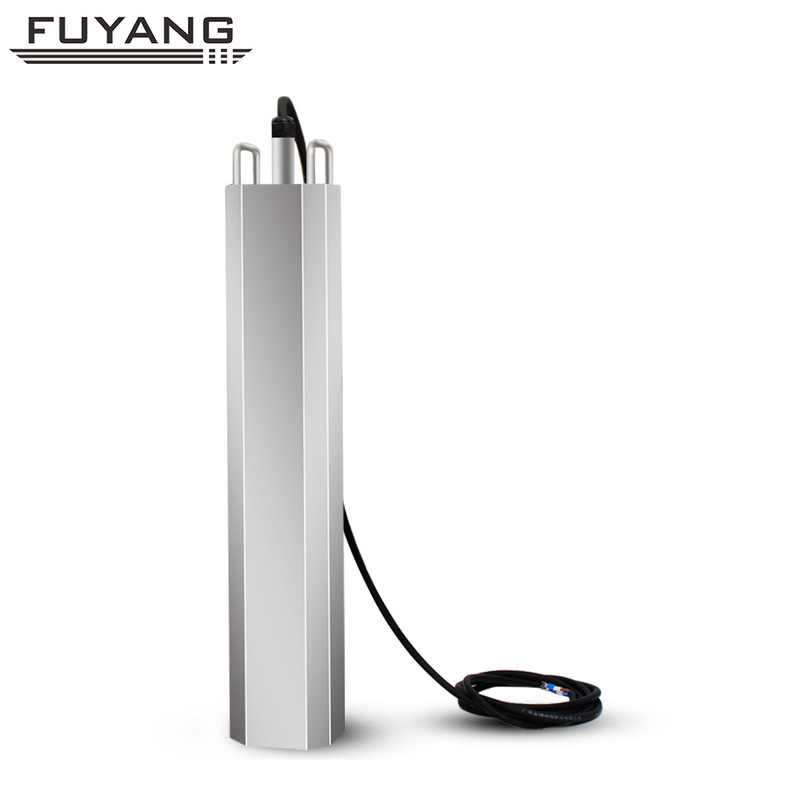

1200w Ultrasonic Vibration Generator Diameter 600mm Submersible Immersible Transducer Rod Sturring

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-124s

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

Ultrasonic Vibration Generator 600mm

,

Ultrasonic Vibration Generator 40KHZ

,

immersible transducer Rod

Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Frequency:
40KHz
Length:
600mm
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Frequency:
40KHz
Length:
600mm
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Description
1200w Ultrasonic Vibration Generator Diameter 600mm Submersible Immersible Transducer Rod Sturring

1200W 40KHZ FUYANG Tank Immersible Ultrasonic Transducer Tubular Water Drop

Product Description

What is it?

Ultrasonic Tubular Submersible Transducer are also called submersible transducer probe. Industrial applications using ultrasonic bar for cleaning, extraction, chemical reaction, anti-scaling, water treatment, etc., are very mature and widely used technologies.

Ultrasonic tubular transducer rod use the alternating period of positive and negative pressures in the transmission process of ultrasonic waves. When its phase is in the positive phase, the media molecules are squeezed to increase the original density of the medium. In the negative phase, the medium molecules are sparse and discrete, and the medium density is Decrease. Ultrasonic transducer bar can generate ultrasonic waves around 360°, and the energy output is not affected by changes in the load level, temperature, etc. Ultrasonic transducer bar generally include high-power ultrasonic transducers, horns, and tool heads. ), used to generate ultrasonic vibrations and emit this vibration energy into the liquid. The transducer converts the input electrical energy into mechanical energy, ie ultrasonic waves. The manifestation is that the transducer moves back and forth in the longitudinal direction with an amplitude of typically several micrometers. This kind of amplitude power density is not enough and cannot be used directly. The horn magnifies the amplitude as designed, isolates the reaction solution and the transducer, and also fix the entire ultrasonic vibration system. The tool head is connected to the horn, and the horn transfers the ultrasonic energy vibration to the tool head. The tool head then transmits the ultrasonic energy into the chemical reaction liquid.



Advantage



1. Ultrasonic cavitation occurs around the vibrating rod, and the ultrasonic energy is distributed very evenly around the rod.

2. The power output of the ultrasonic vibrator is not affected by the changes in the liquid level, tank capacity, and temperature difference, and the power output is stable and uniform.

3, ultrasonic transducer rod work life span is more than 1.5 times as traditional ultrasonic transducers box;

4. Ultrasonic transducer rod with round tube design makes it easy to install and use

5. ultrasonic immersible transducer rod is absolutely waterproof, safe to use.
