450W 40 Khz Immersed Ultrasonic Vibration Generator 480mm Length Stainless Steel SUS304

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-109

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

450W Ultrasonic Vibration Generator

,

450W immersible transducer ultrasonic

,

480mm Ultrasonic Vibration Generator

Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Length:
480mm
Material:
Stainless Steel SUS304
Frequency:
40KHz
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Length:
480mm
Material:
Stainless Steel SUS304
Frequency:
40KHz
Applicable Industries:
Machinery Repair Shops, Home Use, Retail
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Description

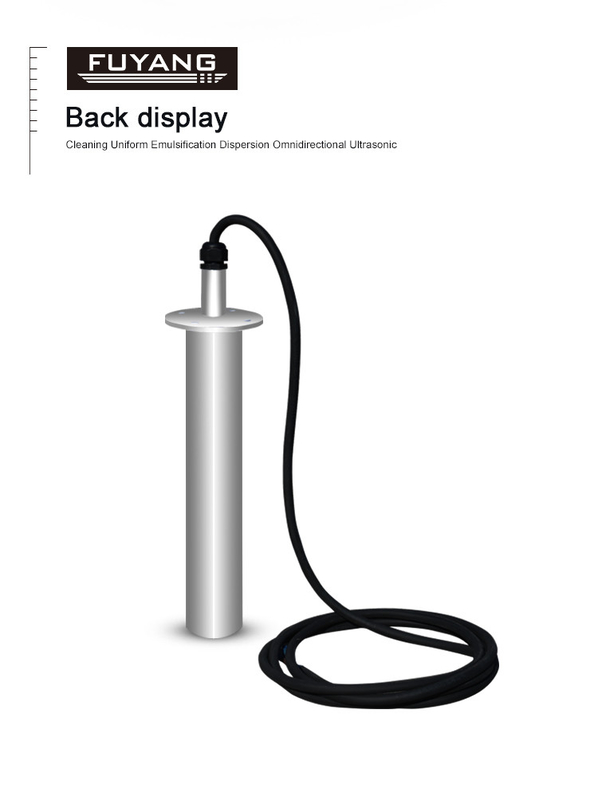

450W 40 Khz Immersed Ultrasonic Vibration Generator 480mm Length Stainless Steel SUS304

450W 40 khz FUYANG Ultrasonic Immersed Transducer Box For Oil Dispersed chemical reactions

Same models with different capacity



Model Length(mm) Frequency(KZh) Ultrasonic power
F-103 180 40 150W
F-106 330 40 300W
F-109 480 40 450W
F-112 630 40 600W
F-115 780 40 750W
F-118 930 40 900W
F-121 1060 40 1050W
F-124 1200 40 1200W
F-127 1360 40 1350W
F-130 1530 40 1500W
F-133 1680 40 1650W
F-136 1830 40 1800W
























450W 40 Khz Immersed Ultrasonic Vibration Generator 480mm Length Stainless Steel SUS304 0


FAQ
1. Q. How do I get the best ultrasonic cleaning?
Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, cleaning time, and choosing the suitable size and type of ultrasonic cleaner.
2. Q. Can ultrasonic cleaning damage my parts?
Ultrasonic cleaning is considered, safe for most parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level.
3. Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better cleaning effect.
4. Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.
5. Q: What about the warranty?
A: 1 Year warranty for all ultrasonic cleaner. If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
