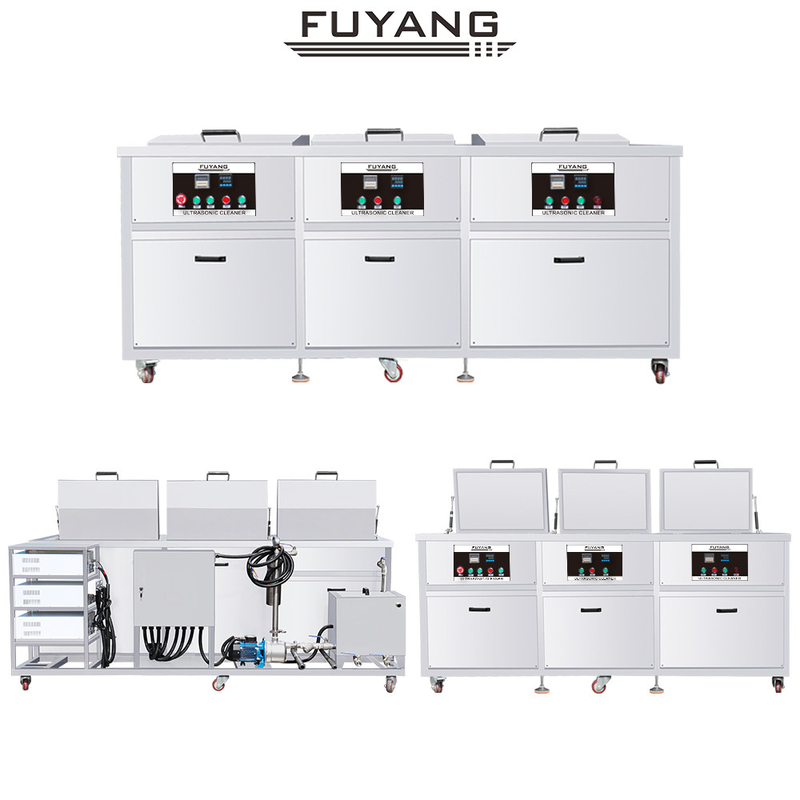

Customized Size Industrial Ultrasonic Cleaner Equipment Multi Tank SUS304 360L

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-3072

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

Customized Industrial Ultrasonic Cleaner

,

Ultrasonic Cleaner Equipment 360L

,

SUS304 Ultrasonic Cleaner Equipment

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
1000*600*600mm
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Motor, Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Material:
Stainless Steel SUS304
Tank Size:
1000*600*600mm
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Description
Customized Size Industrial Ultrasonic Cleaner Equipment Multi Tank SUS304 360L

SUS304 360L can be customized Industrial Ultrasonic Cleaning Equipment Multi Tank

Specification

Model F-3072
1st Tank Volume 360L Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 360L Ultrasonic Rinsng tank
3rd Tank Volume 360L Drying tank
1st tank size60 1000X600X600mm
2nd tank size 1000X600X600mm
3rd Tank size 1000X600X600mm
Ultrasonic Power

3600W*2

Heating Power of Ultrasonic tank 9000W*2
Heating Power of Drying tank 9000W
Frenquency 40KHz
Drying System 1 set
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304
Power Supply AC 380V 3 phase
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water



Same series with different size for your choice:

Model
capacity
tank size(mm)
Ultrasonic power
F-3012
45L
500*300*300
700W
F-3018
61L
500X350X350
900W
F-3024
88L
550X400X400
1200W
F-3030
108L
600X450X400
1500W
F-3031
96L
800X300X400
1500W
F-3036
135L
600X500X450
1800W
F-3048
192L
700X550X500
2400W
F-3060
264L
800X600X550
3000W
F-3072
360L
1000*600*600
3600W



Applications:



Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.



Industrial cleaning equipment, ultrasonic cleaning machines are widely used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.Applications

Commonly used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment.



Industrial cleaning equipment, ultrasonic cleaning machines are widely used in precision hardware, electronics, semiconductors, watches, jewelry, energy, optics, medicine, automotive manufacturing, electroplating, painting and vacuum coating pretreatment. It is especially suitable for parts with complex surface shapes.

Characteristics

Ultrasonic activity operates on similar principles to sound waves. As electrical energy is transferred to mechanical energy, it causes positive and negative pressure waves that generate microscopic bubbles that form on all surfaces throughout the component being cleaned. But these are no ordinary bubbles. The air bubbles in the fluid in ultrasonic cleaning equipment implode when they come into contact with a solid surface. This effect is known as cavitation. When the air bubbles implode, a powerful jet of fluid is created which comes into contact with the surfaces of the objects being cleaned at extremely high pressures and temperatures. This dynamic effect separates contaminants from all surfaces without damaging the object in any way. These micro-jet shock waves, combined with special ultrasonic cleaning solvents, remove bitumen, heavy oils, fats lime scale deposits and other (chemical) waste products in refineries much faster and more thoroughly than conventional methods (high pressure,steam, mechanical and chemical cleaning).
Usage: The system is developed to generate a faster and higher cleaning level by means of ultrasonic power, in combination with specialized chemicals (degradable). Due to the microscopic level a perfect inner and outer penetration will be created


Ultrasonic cleaner applied ranges:
Machinery industry: Removing rust and grease for Machinery Parts, Engine, carburetor and automobile parts cleaning, Filter. Clear filter, especially in the railway industry, for degreasing decontamination conditioned train cars, each member of the front of the train rust, oil, and rust, very suitable
Surface treatment industry: Degreasing derusting before plating, cleaning before Ion plating, Metal workpiece surface activation treatment, phosphating, remove carbon deposition, oxidation and polishing paste
Instrument industry: precision parts cleaning
Electronic industry: remove Rosin and welding spot for p.c.b. boards, machinery parts cleaning
Medical industry: medical apparatus and instruments cleaning and disinfecting
Semiconductor industry: Semiconductor chips etc.
Jewellery & Watch industry: Remove oil sludge, dust, oxidation layer, polishing paste. Etc.
Chemical biology industry: labwares’ cleaning and descaling
Optics industry: Optical vessels oil, sweat and dust removal
Textile printing and dyeing industry: textile spindle, spinneret plate cleaning.
Petroleum chemical industry: Metal screen cleaning, chemical containers and switchs' cleaning
