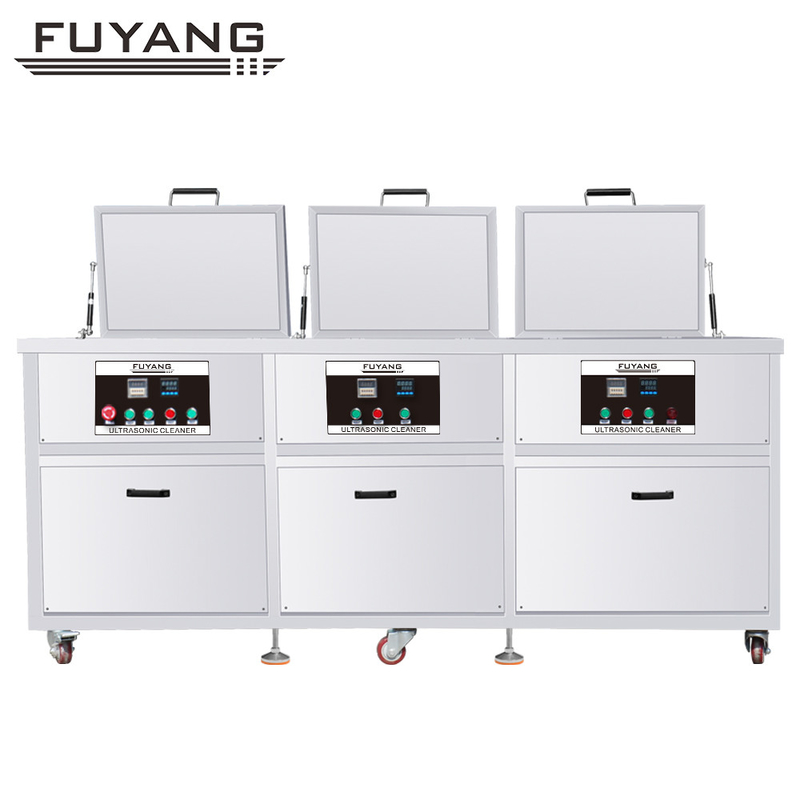

RoHS 40KHz Multi Tank Ultrasonic Cleaner 61L Industrial Ultrasonic Washing Machine

Product Details

Place of Origin: China

Brand Name: FUYANG

Certification: ce, RoHS

Model Number: F-3018

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: 1unit/carton box

Delivery Time: 5-7working days

Payment Terms: T/T

Supply Ability: 100PCS /DAY

Get Best Price
Contact Now
Specifications
Highlight:

Industrial Multi Tank Ultrasonic Cleaner

,

61L Industrial Ultrasonic Washing Machine

,

61L Multi Tank Ultrasonic Cleaner

Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Tank Size:
500*350*350mm
Frequency:
40KHz
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Machine Type:
Industrial Ultrasonic Cleaner
Core Components:
Industrial Sensor
Cleaning Process:
Cold Water Cleaning
Tank Size:
500*350*350mm
Frequency:
40KHz
Cleaning Type:
Immersion / Soak
Warranty:
1 Year
Use:
Degreasing
Description
RoHS 40KHz Multi Tank Ultrasonic Cleaner 61L Industrial Ultrasonic Washing Machine

61L can be customized Industrial Ultrasonic Cleaner Washer

Specification

Model F-3018
1st Tank Volume 61L Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 61L Ultrasonic Rinsng tank
3rd Tank Volume 61L Drying tank
1st tank size 500X350X350mm
2nd tank size 500X350X350mm
3rd Tank size 500X350X350mm
Ultrasonic Power 700W*2
Heating Power of Ultrasonic tank 1500W*2
Heating Power of Drying tank 1500W
Frenquency 40KHz
Drying System 1 set
Unit size 2460*1310*1050mm
Packing size 2520*1370*1170mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304
Power Supply AC 380V 3 phase
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water
What are advantages of ultrasound over traditional cleaning methods?
1).minimizes the use of manual labor
2).makes cleaning and degreasing without the use of organic solvents
3).reaches every area of product and remove all types of dirt
4).shorten processes such as extraction, dispersion, purification, and chemical reactions.
5).eliminates costly mechanical and chemical cleaning of heat exchangers
Will ultrasonic cleaning damage item’s parts?
Ultrasonic cleaning is considered as safe cleaning way for most parts;
In some cases, it is necessary to observe carefully. The effect of thousands of implosions per second is very powerful, and the cleaning process is safe.

Q1.How do I get the best ultrasonic cleaning?

There are many considerations important to ultrasonic cleaning. Optimizing these variables will produce the best cleaning. The most important decisions to be made are choosing the proper cleaning solution, cleaning at the right temperature for the correct amount of time, and choosing the right size and type of ultrasonic cleaner.



Q2.Can ultrasonic cleaning damage my parts?

With certain cautions, ultrasonic cleaning is considered safe for most parts. While the effects of thousands of implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. The most important cautionary consideration is the choice of cleaning solution. Potentially adverse effects of the detergent on the material being cleaned will be enhanced by the ultrasonic.



Q3.Why is a special solution required for cleaning?

Soils adhere to the parts... if they didn't, the soil would just fall off the parts! The purpose of the solution is to break the bond between parts and their soils. Water alone has no cleaning properties. The primary purpose of the ultrasonic activity (cavitation) is to assist the solution in doing its job. An ultrasonic cleaning solution contains various ingredients designed to optimize the ultrasonic cleaning process. For example, increased cavitation levels result from reduced fluid surface tension. An ultrasonic solution will contain a good wetting agent or surfactant.



Q4.What cleaning solution should I use?

Modern ultrasonic cleaning solutions are compounded from a variety of detergents, wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to preclude undesirable reactivity with the part being cleaned.
